Combi-Refrigerator Solution-Refrigerator digital board control PCBA
Refrigerator Solution
Refrigerator ambient temperature sensor,Evaporator’s sensor
Refrigerator Solution

 After connecting power,the alarm sounds and the compressor and fan motor should be ON,the display shows the product’s temperature setting.


  • Refrigerator display panel 1

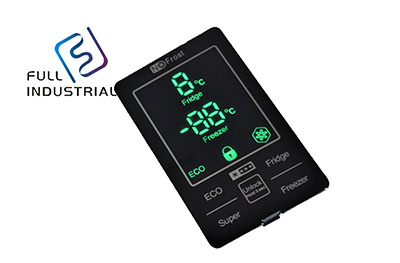

    Refrigerator display panel 1

    Refrigerator display panel 1Refrigerator display panel 1
    If the door is close and compressor is ON,fan motor set should be ON and if compressor is OFF fan motor also should be OFF. When the door opens fan motor should be OFF if the Super mode is active,fan motor set should be ON(In this situation the operation of the fan motor does not depends on the door.(Open or close))

    Learn more >>

  • Refrigerator display panel 2

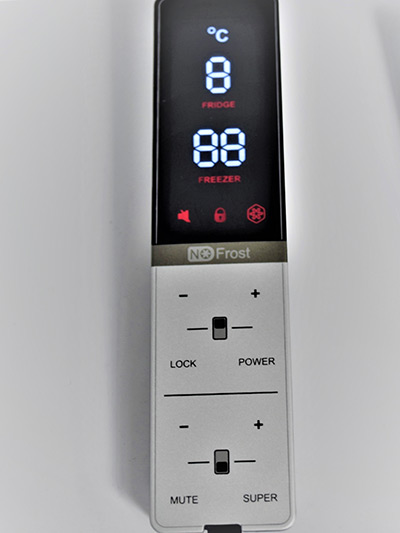

    Refrigerator display panel 2

    Refrigerator display panel 1Refrigerator display panel 2
    If the door is close and compressor is ON,fan motor set should be ON and if compressor is OFF fan motor also should be OFF. When the door opens fan motor should be OFF if the Super mode is active,fan motor set should be ON(In this situation the operation of the fan motor does not depends on the door.(Open or close))

    Learn more >>
